TTGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module
(0) 0 Reviews 0 Orders 0 Wish listed
UGX180,000
Quantity :
Total price :
  (Tax : )
Out of stock

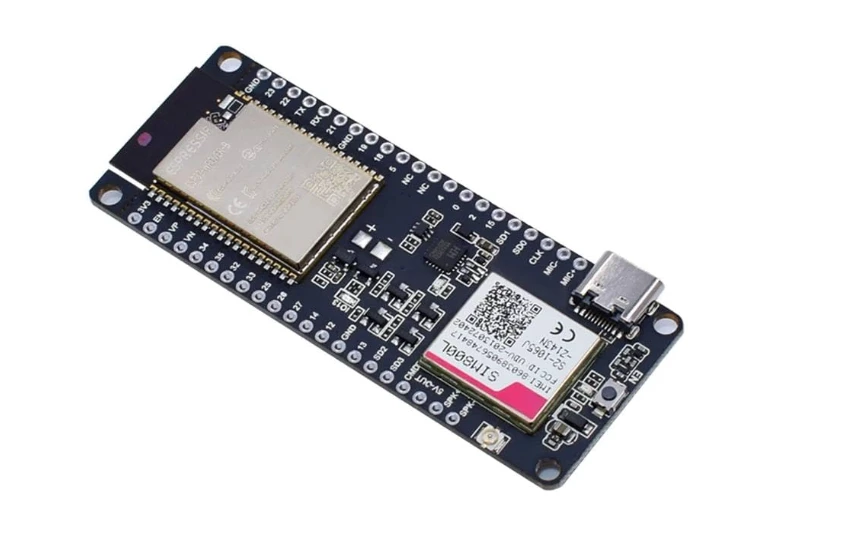

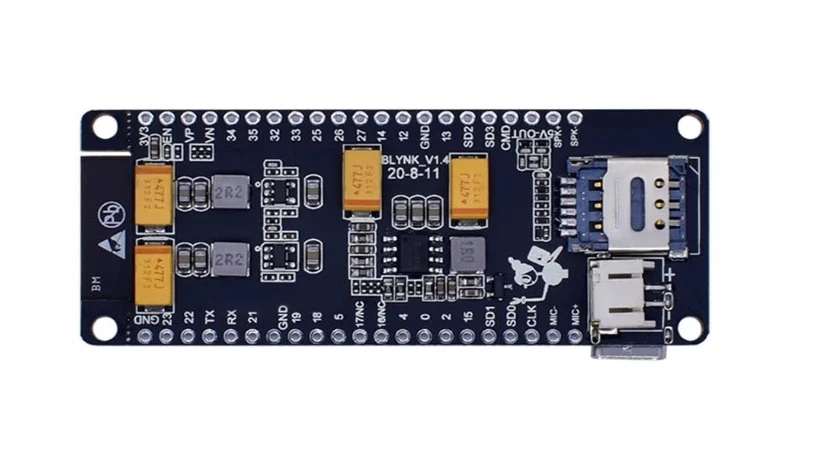

This is a LILYGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered. The module is used for wireless communication. The ESP V1.4 ESP32 Serial WIFI Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.

This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.



Specifications:

  1. Chipset :ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
  2. FLASH: QSPI flash 4MB / PSRAM 8MB
  3. SRAM:520 kB SRAM
  4. Button: Reset
  5. USB to TTL: CP2104
  6. Modular interface: UART,SPI,SDIO,I2C,PWM,TV PWM,I2S,IRGPIO
  7. On-board clock:40MHz crystal oscillator
  8. Working voltage:2.7V-3.6V
  9. Working current: About 70mA

Package Includes:

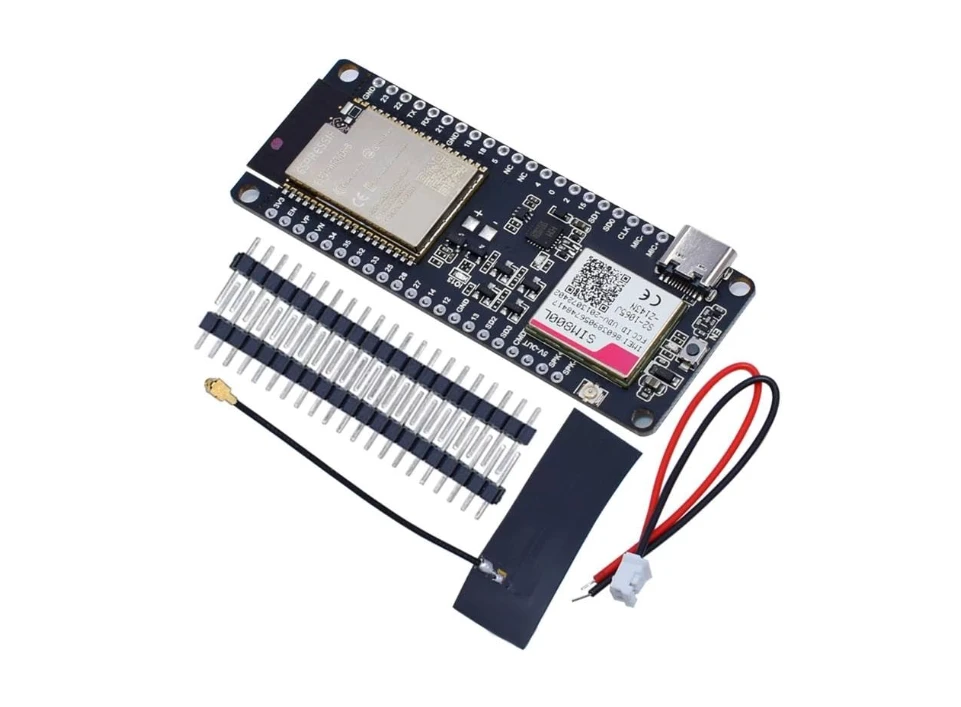

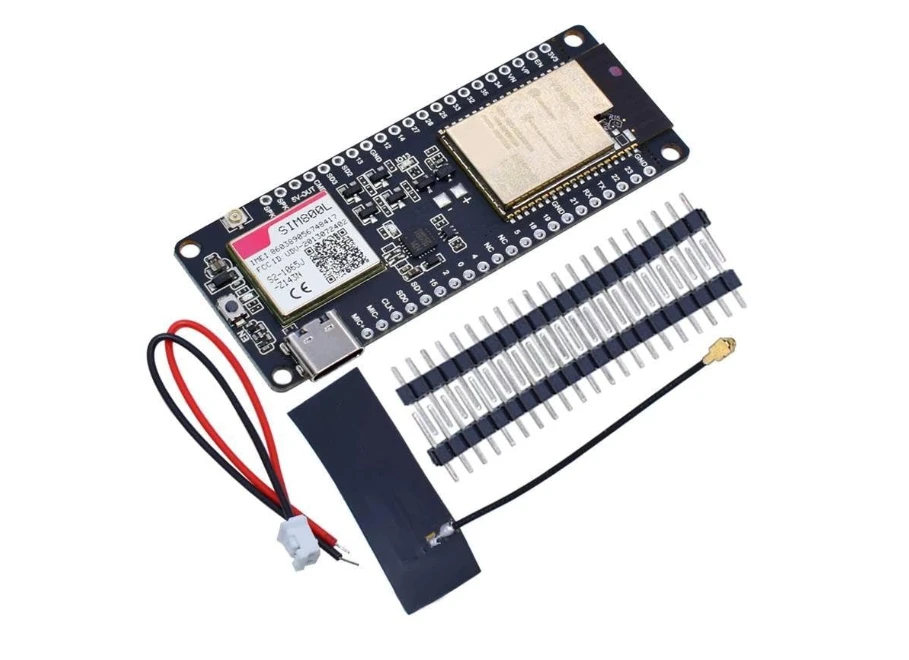

1 x LILYGO T-Call V1.4 ESP32 Wireless Module SIM Antenna SIM Card SIM800L Module Unsoldered
