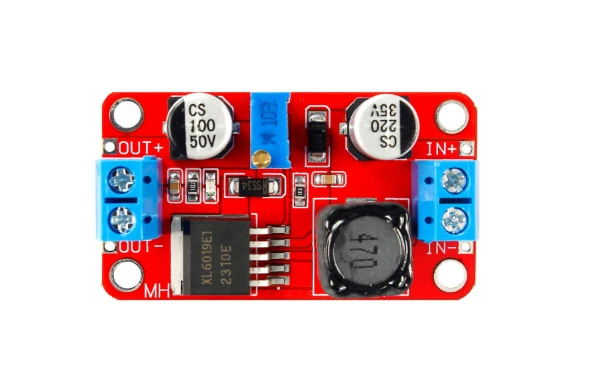

XL6019 is a monolithic integrated circuit specially designed for boost and buck. It can work in the range of DC 5V to 40V input voltage, low ripple and built-in power MOS. XL6019 has built-in fixed frequency oscillator and frequency compensation circuit, which simplifies the circuit design. The PWM control loop can adjust the linear change of duty cycle from 0% to 90%. Built-in over-current protection function and EN foot logic level turn-off function.

Specifications:

· Input range: 3.8 V-32 V

· Output range: 1.25 V-35 V

· Input current: 3A (max), 18 ma without load (5 V input, 8 V output, the load is not less than 18 m, the higher the voltage, the higher the load current).

· Conversion efficiency: <94% (the higher the pressure, the lower the efficiency)

· Switching frequency 400 kHz

· Output ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)

· Operating temperature: -40- + 85

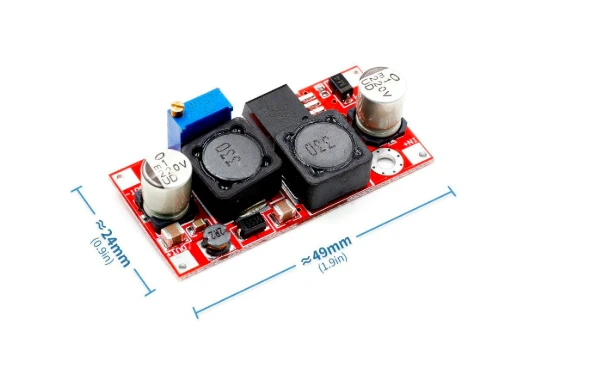

· Size: 49mm * 24mm (L * W )

Package Include:
1x Step-up Module
