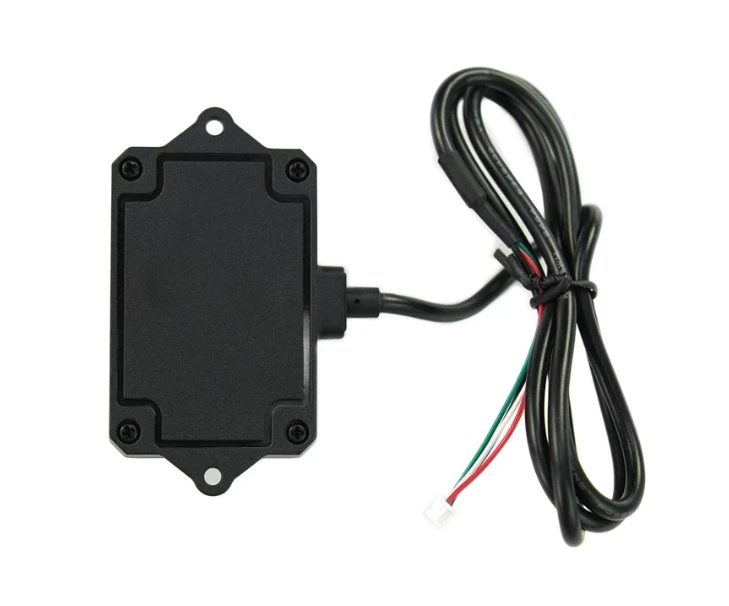

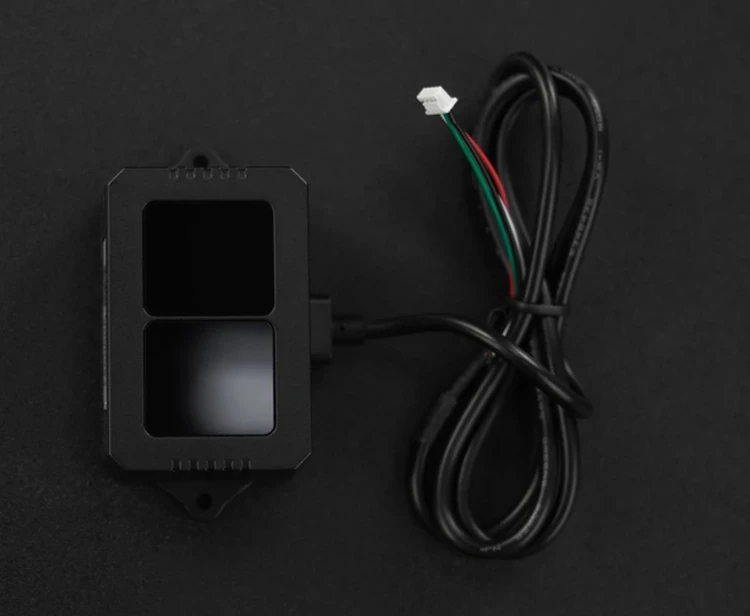

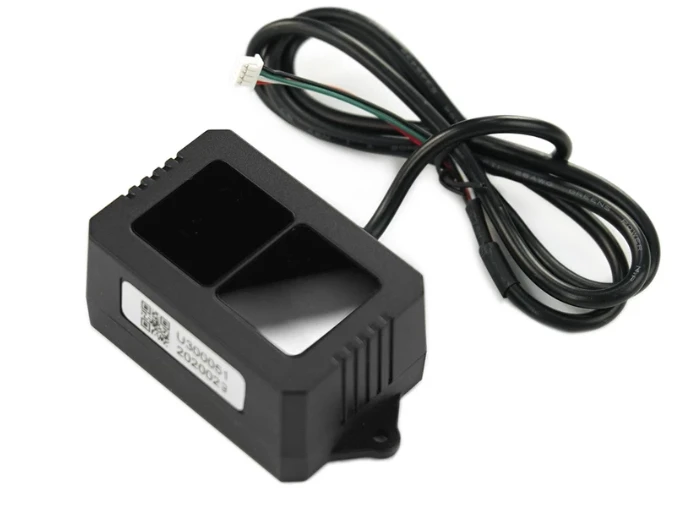

The TF02-Pro is a TOF single-point solid state LIDAR. The TF02-Pro is based on the TF02 and has been significantly upgraded and optimised to achieve a range of up to 40 m. The more efficient optical system and better circuit design ensure higher range performance. It can be widely used in the fields of UAV height fixing, intelligent transportation, intelligent parking, intelligent agriculture, etc.

How does TF02-Pro LiDAR work?

TF02-Pro ToF Single-Point Ranging Solid State LiDARis a newly developed product based on the widespread application experience of TF01. It is a unidirectional laser rangefinder, which is based on ToF (Time of Flight) technology. It is comprised of particular optical and electrical devices that make it stable, high sensitivity, and high precision.

Note: the side length of detecting range is not equal to the object resolution at the corresponding distance.

Features:

·       High sensitivity, and able to measure as far as 40 meters

·       High-speed measurement with a maximum sampling frequency of 100Hz

·       Excellent anti-ambient light usability (operable under 100kLux ambient light)

·       Protection Grade reaches IP65

·       Anti-corrosive against pesticide

·       Small in size and light

Applications:

·       Drone altitude holding and terrain following

·       Machine control and safety sensors

·       Distance measuring instrument

Specifications:

·       Detection Range: 0.1-40m

·       Accuracy: ±5cm(0.1~5m)，±1%(5~40m)

·       Measuring Speed: 1-1000Hz Adjustable

·       Protection level: IP65

·       Light Resistance: Operate under ambient light of 100 Klux

·       Power: DC 5V~12V

·       Power: <1 W

·       Interface: UART

·       Weight: 50g

·       FoV: 3°

·       Dimensions:69mmx41.5mmx26mm

·       Storage temperature:-30~80℃

Documents:

·       Product Manual

·       Datasheet

·       Display Program

·       TF02-Pro RoHS

·       TF02-Pro CE-SH

·       Arduino Developer Guide

·       FAQ List

·       FAQ about LiDAR

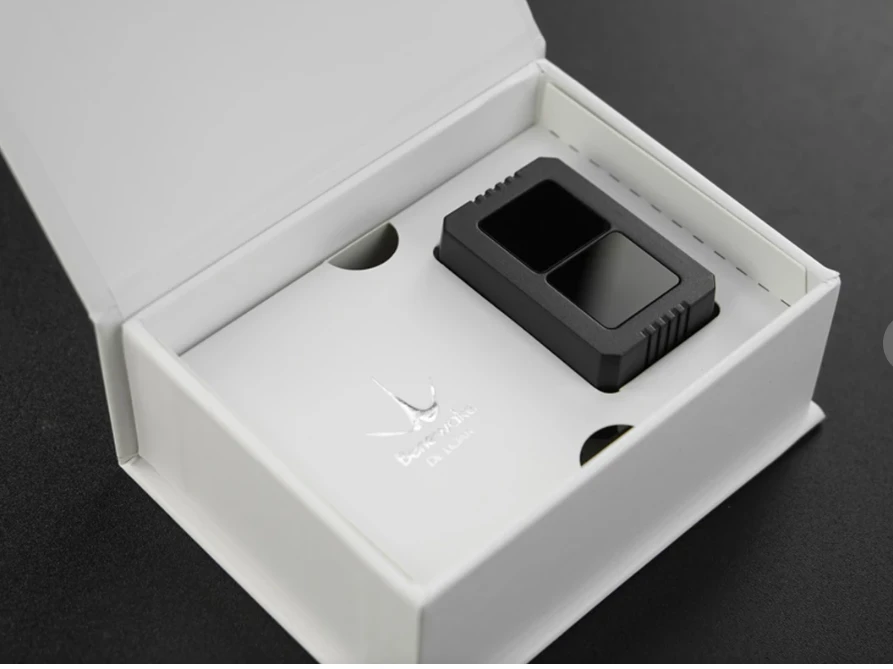

Package List:

·       TF02-Pro ToF Single-Point Ranging Solid State LiDAR Sensor(40m) x1
