DC 12V 150mm 500N 50KG）Linear Actuator

(0) 0 Reviews 0 Orders 0 Wish listed

UGX320,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

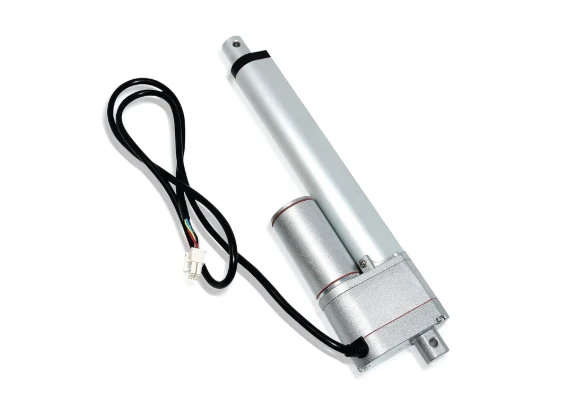

Compact and economic linear actuator for smaller projects, where it can be used for numerous purposes. The actuator moves at 20mm per second and stops automatically when fully retracted or fully driven out. This makes it easy to mount without having to us end stops or similar.

It is important to point out that there can be a margin of up to +/- 10% in regards to the movement of 20mm per second.

The linear actuator can be used for lifting, turning, pulling or pushing parts, such as doors, gates, windows, tools etc. You should always consider the safety before using it.

The actuator is connected directly to 12V DC or 24V DC depending on the chosen model. It will retract or drive out depending on connected polarity. Reversing the polarity will reverse the direction. This can be done with a two-pole switch, relay or other controls.

The actuator is made of anodized aluminum and should not be used outdoors, or in exposed places.

The holes in both ends for mounting are 6mm. You will typically bolt the actuator in both ends, so that it can move freely when moving in and out.

Specifications:

· Travel length -150mm

· Extended length: 250mm

· Extended total length -400mm

· Power supply DC12V

· Torque: 20MM/s 500N （ 50KG ）
