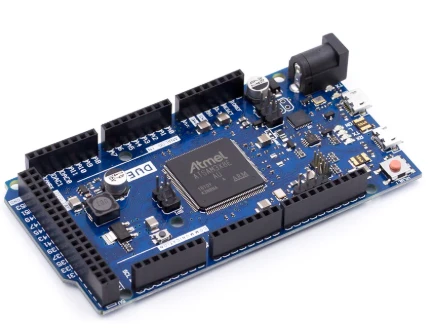

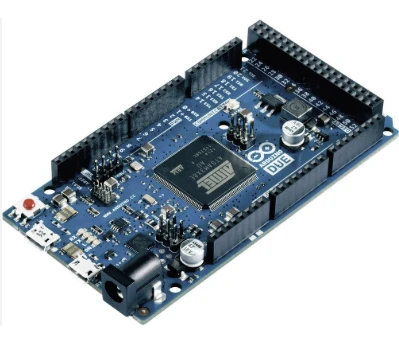

The Arduino Due is one of the most powerful and useful development
boards to come from the Arduino family. PMD Way offers a 100% compatible board
based on the Arduino open-source design that's ideal for more complex projects
- and includes a USB cable and free delivery.
The Arduino Due was Arduino’s first ARM-based Arduino development
board. This board is based on a powerful 32bit CortexM3 ARM microcontroller
made programmable through the familiar Arduino IDE. It increases the computing
power available to Arduino users keeping the language as compatible as possible
so that many programs will be migrated in a matter of minutes!
The Arduino Due has 54 digital input/output pins (of which 12 can be
used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84
MHz clock, a USB-OTG capable connection, 2 DAC (digital to analog), 2 TWI, a
power jack, an SPI header, a JTAG header, a reset button and an erase button.
There are also some cool features like DACs, Audio, DMA , an experimental multi
tasking library and more.
Because of the limitations of system voltage imposed by the Atmel
SAM3X8E, Arduino shields that are based on the 5v models won’t work properly.
All the shields that fully implement the Arduino R3 layout are compatible
straight away (like the Arduino WiFi shield and Ethernet Shield) but other
shields might not be compatible. Be careful when you’re plugging stuff in!
Note: Unlike
other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage
that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to
an I/O pin could damage the board.
Specifications:

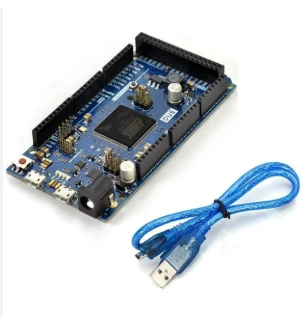

Included in Package:
·
1x Arduino Due
board
·
1XUSB cable
