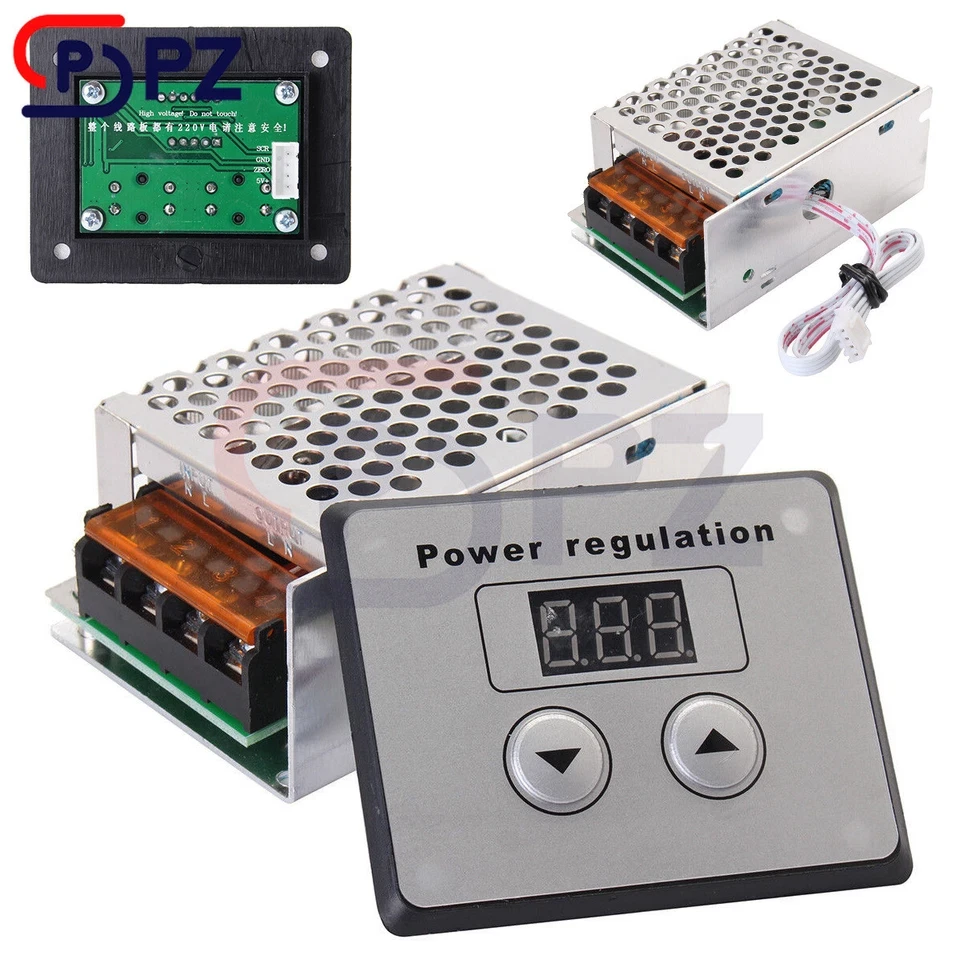

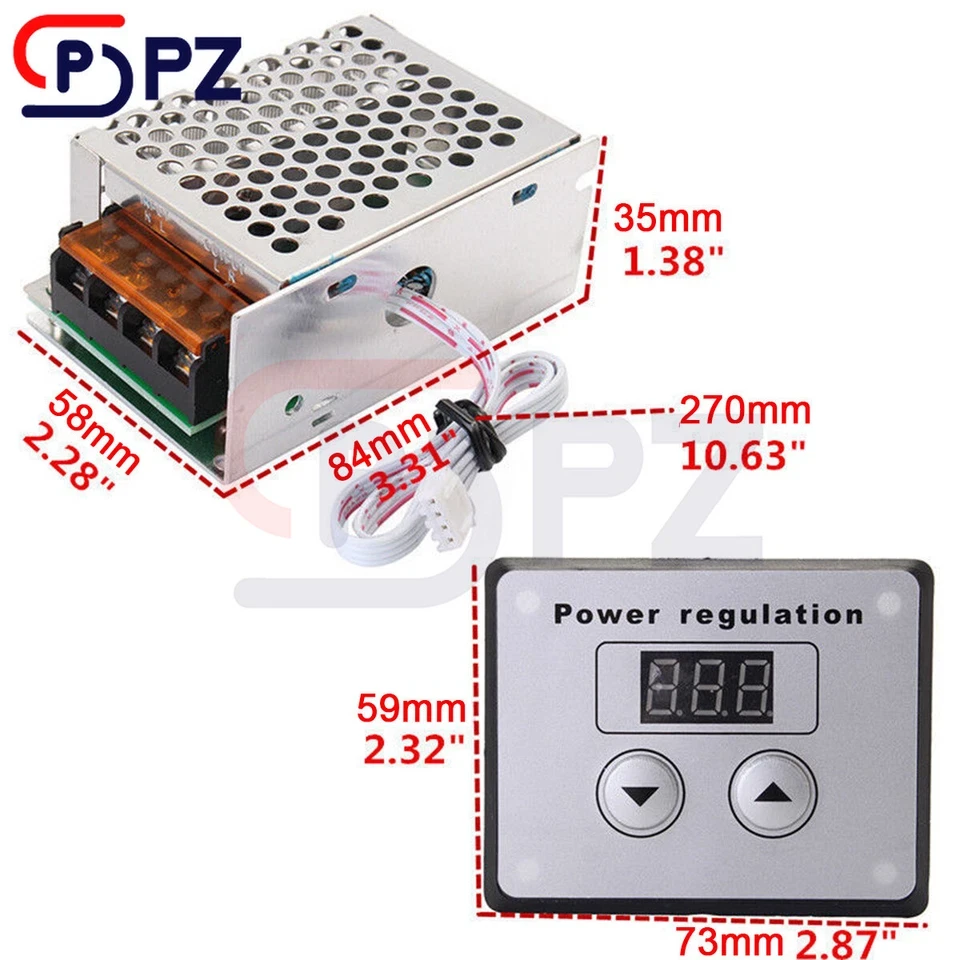

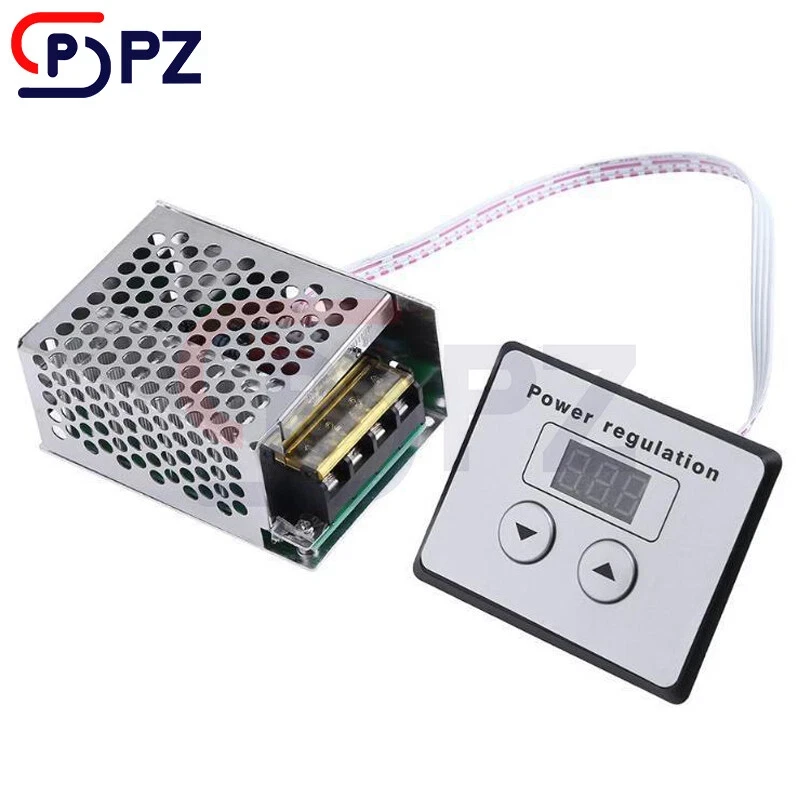

This 4000W Thyristor is based on SCR Voltage Regulator Temperature Dimmer for Speed / Light (AC 220V). This module is defined as a Dimmer used to control 220V Appliances. It is widely used as a light dimmer, fan speed controller, stove temperature controller. This simple and easy module is capable of controlling appliances up to 4000W.

This SCR Voltage Regulator speed controller uses novel bi-directional high-power SCR. It is quite simple and convenient to adjust the current up to 25A and solve the over current problem of the heating wire. In this module, the output voltage is adjusted anywhere between 10v – 220v for use with electrical appliances. This module offers a wide range of applications in an electric stove, water heater tune thermal, lighting dimmer, small motor speed, electric iron thermostat, and achieve dimming, thermostats, pressure regulator effect. This module operated by just giving the  AC input to the module and connecting the appliance at the output of the module. The onboard potentiometer knob functions to adjust dimming, speed, voltage, temperature control. And set the required power output from your 220V device.

The 4000W 220V SCR Voltage Regulator Dimmers Speed Controller Thermostat is manufactured as double insulation. Hence there will be no electric leakage if short-circuit or SCR burn out. This module has the power to prevent peak voltage and electrical surges. Moreover, the RC absorption and fuse enhance ensures user safety making the module perfect for home appliances. The module is encapsulated in an aluminium case preventing easy damage. Whereas the presence of filled tin prevents it from heating when in the huge current. Meanwhile, this module made up of a protective cap and connection post allows the thicker and larger heat sink to fit perfectly with the module.

Specifications:

• Input Voltage: 220V AC.
• Maximum Power: 4000W.
• Voltage Regulation: AC 0-220V
• AC frequency: 50-60Hz.
• Rotation hole of 6mm
• SCR Model: BT-800B

Package contents:

• 1x4000W SCR Voltage Regulator
• 1 x Switch Panel
• 1 x Cable
