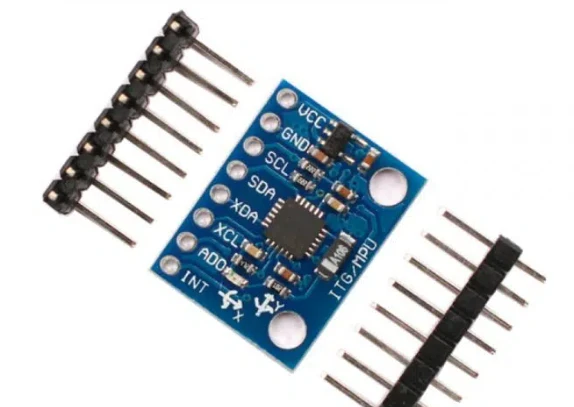

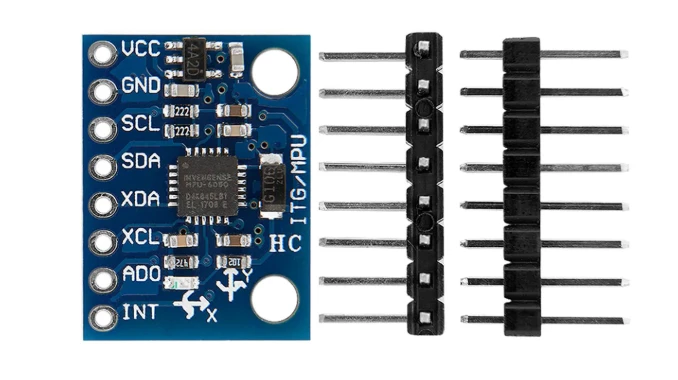

This board
includes a MPU-6050 6-Axis Motion Processing Unit, a 2.5V voltage regulator,
and the logic level converter circuit to makes it work under the power of
3V-5V. Based on its I2C communication protocol, you can use very few wires to
connect it with a 3V-5V MCU directly.
The MPU-6050
sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is
very accurate, since it contains 16-bits analog to digital conversion hardware
for each channel. Therefor it captures the x, y, and z channel at the same
time.
Electronic Features :
Name: MPU-6050 module (three-axis
gyroscope + triaxial accelerometer)
Chip: MPU-6050
Power supply: 3V-5V power(internal low dropout regulator)
Gyroscope range: + 250 500 1000 2000 ° / s
Acceleration range: ± 2 ± 4 ± 8 ± 16 g
Communication Mode: standard IIC communication protocol
Chip built-in 16 bit AD converter, 16 bits data output
Pin pitch 2.54 mm
Size: 20.3mm x 15.6mm
Immersion Gold PCB, machine welding process to ensure quality
Connection
Arduino GND -> MPU-6050 GND
Arduino 3.3V -> MPU-6050 VCC
Arduino A4 (SDA) -> MPU-6050 SDA
Arduino A5 (SCL) -> MPU-6050 SCL
