In
the process of circuit signal transmission, the voltage signal will weaken as
the transmission distance increases. The use of current transmission can avoid
the signal from weakening. This module is used at the end of current signal
transmission to convert the signal into a voltage signal for detection by the
microcontroller. The current input supports 4-20 Ma , 0-20mA , and the voltage
output supports 0-3.3V 0-5V 0-10V
Specifications:
4--20ma
0-2.5V range: J1 1,2 feet short, 3,4 feet shorted
0 - 3.3V range: J1 1,2 feet off, 3,4 feet off
0 - 5.0V range: J1 1,2 feet short, 3,4 feet shorted
0--10.0V range: J1 1,2 feet short, 3,4 feet off
0--20ma
0--3.3V range: J1 1,2 feet short, 3,4 feet shorted
0 - 5.0V range: J1 1,2 feet short, 3,4 feet shorted
0--10.0V range: J1 1,2 feet short, 3,4 feet off
Material: electronic components
Size: 42*25*13.5mm
Color: blue
Package
Contents:

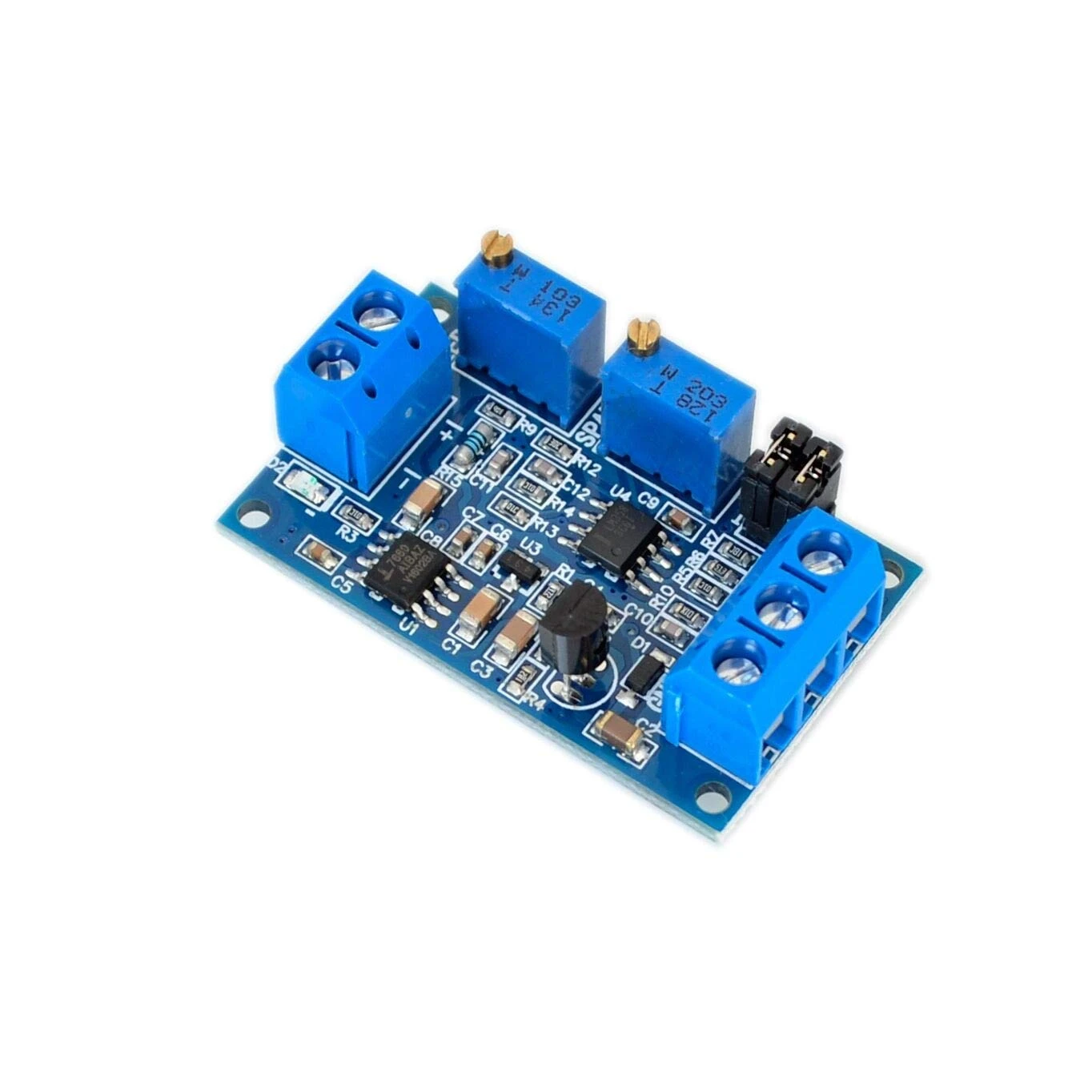

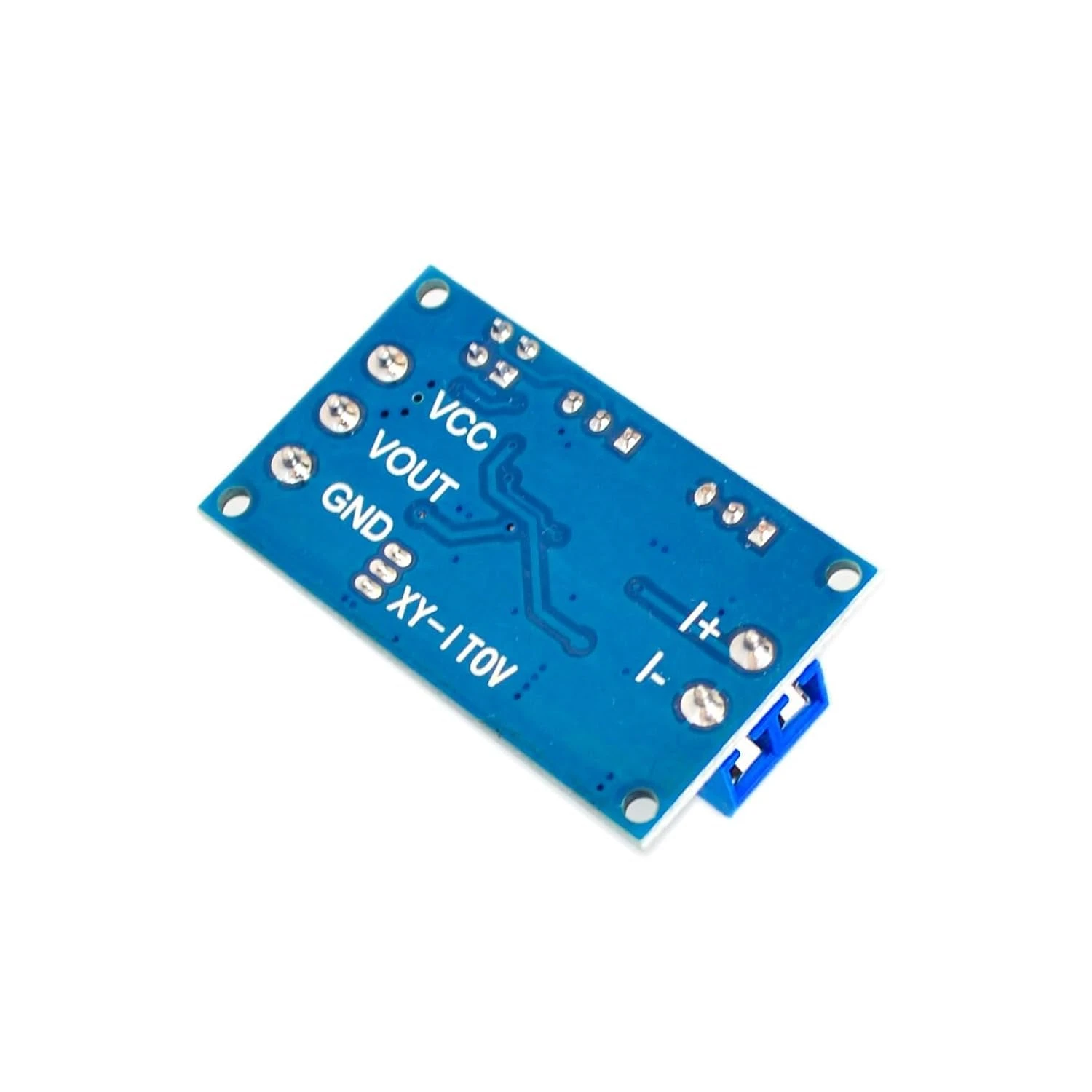

1 x HW685 Current to
Voltage Module
